AL235 Series
AL235 Series

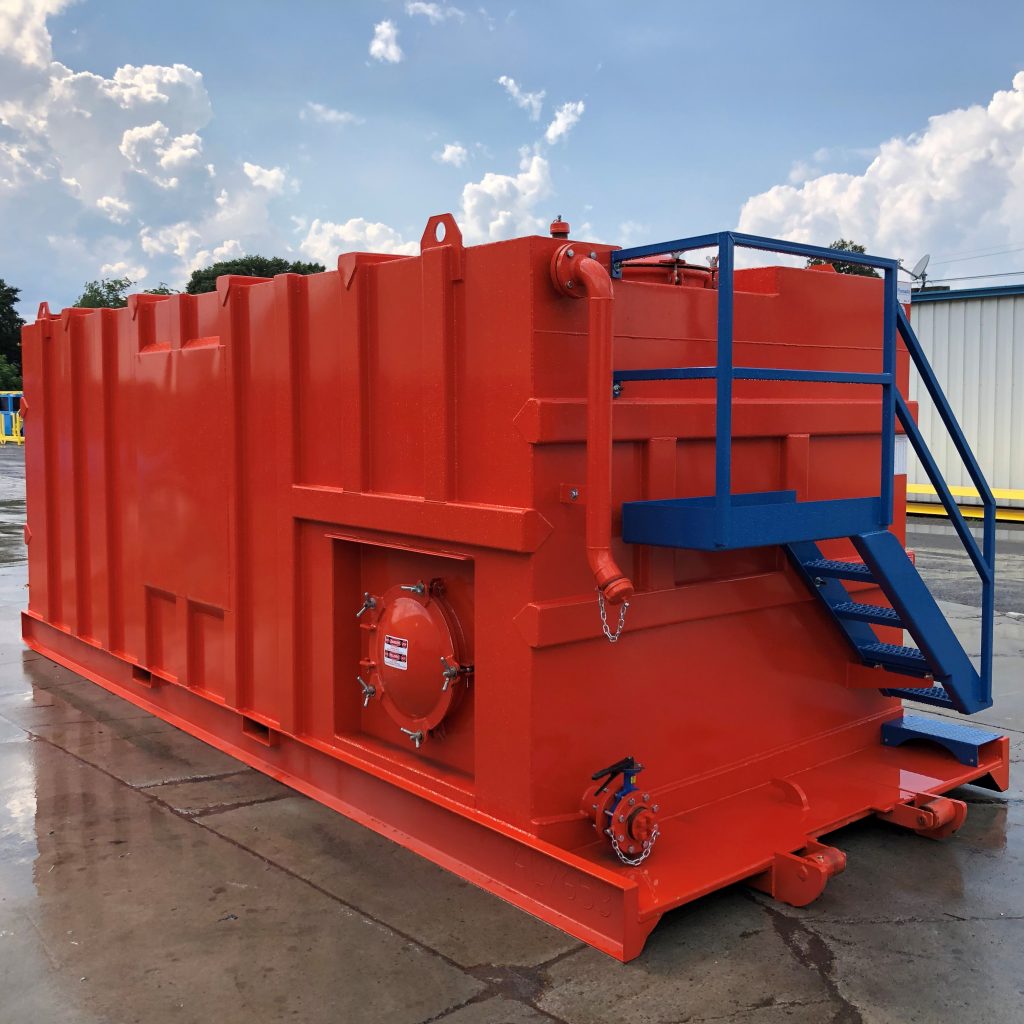

Pinnacle’s AL235 Series Portable Storage Tanks Are Equipped With A Fixed Stair And Walkway For Safe Observation Of Tank Contents.
*Images may feature optional components. Variations between the images and the actual equipment do exist, primarily with appurtenance locations, sizes, and quantities.
AL235
8K Roll Off Mini Tank
200 BBL (8,400 gal.)
Vapor Tight
Pinnacle Quality Assurance Inspections
Full Hydrostatic Water Test
All Walls 1/4″ A36 Carbon Steel
V Bottom Floor with Roll Off Guide Rails & Fork Pockets
Front Mounted Stairway to Platform
Manways 3 – 22″ with Buna Gaskets
Pressure Vacuum Valve – 16oz pressure .4oz vacuum
Drains – 2 – 4″ Butterfly Valve
Flanges – 3 – 4″ Blinded
External Fill Line – 3″ Nipple and Cap
Interior Blast SSPC-SP10 Near White
Carboline 310 Liner 20 – 25 Mils
Exterior Blast SSPC-SP-6 Commercial
Polyurethane 4 – 6 Mils
AL235-OT
8K Roll Off Mini Tank
198 BBL (8,327 gal.)
Pinnacle Quality Assurance Inspections
Full Hydrostatic Water Test
Walls: 1/4″ A36 Plate
V Bottom Floor with Roll Off Guide Rails & Fork Pockets
Front Mounted Stairway to Platform
Manways: 2 – 22″ with Buna Gaskets
Drains: 2 – 4″ Butterfly Valve
Flanges: 2 – 4″ Blinded
External Fill Line: 3″ Nipple and Cap
Interior Blast SSPC-SP10 Near White
Carboline 310 Liner 20 – 25 Mils
Exterior Blast SSPC-SP-6 Commercial
Polyurethane 4 – 6 Mils
Undercoat
AL235-DW
Roll Off Double Wall Mini Tank
170 BBL (7,200 gal.)
Vapor Tight
Pinnacle Quality Assurance Inspections
Full Hydrostatic Water Test
Inner Walls 1/4″ A36 Carbon Steel
Outer Walls 3/16″ A36 Carbon Steel
V Bottom Floor with Roll Off Guide Rails & Fork Pockets
Front Mounted Stairway to Platform
Manways 2 – 22″ with Buna Gaskets
Combo Manway 1 – 36″ & 22″ with Buna Gaskets
Pressure Vacuum Valve – 16oz pressure .4oz vacuum
Drains 2 – 4″ Butterfly Valve
Flanges 2 – 4″ Blinded
Interstitial Drains 3 – 1″ Ball Valves & 2 – 1″ Vents
Interior Blast SSPC-SP-10 Near White
Carboline 310 Liner 20 – 25 Mils
Exterior Blast SSPC-SP-6 Commercial
Polyurethane 4 – 6 Mils
AL235-MX2
2 Mixers Roll Off Mini Tank
170 BBL (7,200 gal.)
Vapor Tight
Pinnacle Quality Assurance Inspections
Full Hydrostatic Water Test
All Walls 1/4″ A36 Carbon Steel
V Bottom Floor with Roll Off Guide Rails & Fork Pockets
Front Mounted Ladder to Roof with Self Locking & Fold-down Guardrails
Manways 3 – 22″ with Buna Gaskets
Pressure Vacuum Valve – 16oz pressure .4oz vacuum
Drains – 2 – 4″ Butterfly Valve
Flanges – 2 – 4″ Blinded
NEMA 7/9 Rated Control Box with 70A Main Breaker
2 Impeller Gear Boxes with 10 Hp 480V – 3 Ph Motors
Interior Blast SSPC-SP-10 Near White
Carboline 310 Liner 20 – 25 Mils
Exterior Blast SSPC-SP-6 Commercial
Polyurethane 4 – 6 Mils
